ETI Part Number: ETI0001-1237
ETI Model: ETI0001-S1R-KII/2.0 NSN: 6130-01-462-8656
or 6130-01-470-8743
or 6130-01-470-1368
Ultra Rugged MilSpec 2000 VA
Rackmount Tactical UPS
Lockheed Martin P/N: 20534121G01
US Navy P/N:
72206, TAC-4 P/N:
S5257-00001
Agilent (HP) P/N:
FCO-ETI0001-S1R
Direct Replacement for:
NSN: 6130-01-530-3056 or 6130-01-523-4761
Milpower Source P/N:
M-120BA-1A
AP
Labs P/N: 12928
Naval
Air Systems Command P/N: 3686AS2946-1
Standard S1R Configuration Compatible w/
all ATWCS, TTWCS, Tomahawk, TAC-4 and TAC-JW Systems Military Power® MilSpec Configuration,
2000 VA UPS
Rugged Rack Mount with
Global Isolated Input and Input PFC

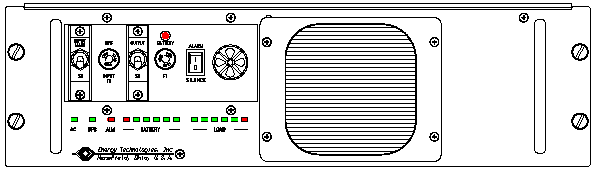

P/N: ETI0001-1237 Rugged MilSpec UPS Standard Front Panel Layout
NSN: 6130-01-462-8656 or NSN: 6130-01-470-8743or NSN:
6130-01-470-1368

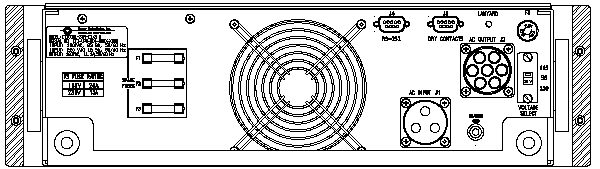

P/N: ETI0001-1237 Rugged MilSpec UPS Standard Rear Panel Layout
The field proven Military Power® UPS line is ideally suited for military,
industrial, computer and telecommunications applications requiring high reliability, rugged construction, compact size and light weight design.
These units are equally suited for use in shipboard, airborne, vehicular, field
deployed or fixed locations with controlled or uncontrolled environments.
The ETI0001-1237 was specifically designed to mount
in the TAC-4 racks and interface with either the TAC-4 PDU or any of numerous ETI
PDUs.
The heavy-duty chassis occupies only 5.25" (3U) of rack space while delivering up to
2000 VA of clean, uninterruptible power. The rounded metal corners and rugged handles, aid
in safe handling. Internally, all major components are well secured and electrically
insulated to prevent damage due to shock and vibration. The optional heavy-duty rack slides provide
easy installation and removal of the unit with full extension. Rear shock
isolation/alignment bushings off load the slides when the unit is fully engaged.
The internal shielded input transformer
provides galvanic isolation with provisions for both domestic
(115 VAC, CONUS) and international (230 VAC, OCONUS) input voltages. The
input voltage selection allows inputting either 115 VAC or 230 VAC
without having to open the UPS enclosure.
Special EMI/RFI filters and input
power factor correction minimize both input current and harmonics. The
unit also operates as a frequency converter, taking 46-70 hertz input and
converting it to clean, uninterruptible 60 hertz power. Optionally, 46-440
hertz input as well either 50
or 400 hertz outputs are available.
The LED arrays keep the operator informed as to
the unit's status including load and battery levels. The high intensity audible alarm can
be heard in high noise environments, yet is easily adjustable to suit quieter conditions.
All controls and protective devices are brought to front and rear panels with critical
switches having finger guards. Further, all front panel devices are recessed to prevent
damage or accidental operation.
The rear panel provides locking
connectors for the input and output power with various optional configurations
available. This reverse air flow version draws air through the front and exhausts out the rear
vent into the rack. A removable and washable intake air filter and high capacity
stainless steel ball
bearing fan provide added protection in both controlled and hostile environments.
The batteries are maintenance free with immobilized electrolyte and are
constructed of flame retardant materials. For more information, see the Battery
Technology section. The two
status D shell connectors provide both a contact and serial interface with
optional computer software providing loss of AC and low battery status as well as remote shut down
capability.
See
ETI0001-1237AA for a version of this unit with front access, hot swappable, drawout
battery module. For a side by side comparison of ETI0001-1237 vs.
ETI0001-1237AA,
click here.
See the Power Distribution Units section for a listing of
stand alone PDUs. See the N5 Series
ETI0001-1437 for a
version of this UPS with an integrated PDU and remote control.
Overall, the PowerStation line is uniquely qualified for critical shipboard, vehicle,
airborne or land based systems combining advanced modular design features with highly
reliable construction.
Technical Specifications: P/N: ETI0001-1237 NSN: 6130-01-462-8656
or
NSN: 6130-01-470-8743 or
NSN: 6130-01-470-8743
AC OUTPUT
Output voltage:
120 VAC true sinewave standard,
others optional
Output rating: UPS
2000 VA standard in 3U chassis
0.65-0.75 pf std, optional configurations to 24,000 VA
Non-linear load capacity:
Up to 100% non-linear load capability w/o
derating
Output voltage regulation: UPS
± 3.0% static regulation of nominal
± 4.0% dynamic (0 to 50% load step)
Overload surge capacity:
110% for 10 minutes; 125% for 30 seconds
Harmonic distortion:
Less than 5.0% into 100% non-linear load
Output frequency: UPS
60 Hz ± 1.0% independent of input frequency 50, 400 or 1000 Hz
output available as an option
Operational status
Status, load and battery LEDs, w/contacts
RS-232 asynchronous serial status COM port
Adjustable level,+90 dB audible alarm w/on/off
AC INPUT
Input voltage selection:
Nominal 115 VAC or 230 VAC via selection switch (S6)
Input voltage tolerance: UPS
85-135 VAC or 170-270 @ full
load without using battery, to 70 VAC @ 75% load
Maintenance free immobilized electrolyte,
Flame retardant materials (Oxygen Index 28+) See ETI0001-1237AA
for version with hot swappable battery module
Battery life:
Rated for continuous service life of 5 years
DC protection:
Front panel mounted fuse
standard, breaker optional
Battery time:
15+ minutes @ 100% load, 30+ minutes @ 50%
Battery recharge:
Recharged to nominal in <8 hours
DISTRIBUTION PANEL
Output circuits:
One output standard, optional configurations
Output control:
Guarded 3 pole switch (S5)
Output receptacles:
MS 3102A-24-10S, 7 pin locking, other options
MECHANICAL
Dimensions ( H x D x W ):
5.25 (3U) x 28.0 x 19.0 in (133
x 711 x 483 mm)
Rack Slide Mount Patterns:
Actron/Jonathan slide pattern, others optional
Rack rear alignment pins:
(2) shock isolation/alignment pin/socket sets
Alternate Mounting Options:
Table, Wall, Floor, Portable,
Horizontal/Vertical
Unit weight:
155 lb. (70 kg) with lift handles front
Audible noise:
Less than 47 dB @ 5.0 ft., ANSI "A"
scale
Cooling type:
High capacity, negative pressure, forced air
Cooling air direction:
Front intake, exhaust to rear,
others optional
Air intake filter:
Washable metal filter media, others optional
ENVIRONMENTAL
Storage temperature:
-40° to 158° F ambient (-40° to 70° C) with fully charged batteries
Operating temperature:
-4° to 131° F ambient ( -20° to 55° C), lower/ higher optional
Operating humidity:
0 to 95% relative humidity (non-condensing)
Storage elevation:
Up to 40,000 ft (12,192 m)
Operating elevation:
Up to 15,000 ft (4,572 m), higher optional
STANDARDS
United States:
Meets UL-1778 standard for UPS
equipment,
MIL STDs 167-1, 454, 810, 901D Grade A, 1399-300A & 2000
Canada:
CSA C22.2 No. 107 UPS safety requirements
EMI Protection:
EMI/RFI FCC Part 15, Class A;
EN55022; MIL
STD 461 standard
