Part Number: ETI0001-1406
Model Number: ETI0001-N5MA2-I/3.0 NSN: 6130-01-490-5565
Rugged COTS 3000 VA Integrated
Rackmount UPS and Intelligent
Power Distribution Unit Combination
P/N: ETI0001-1406, US Navy Standard for
Broadband,
PowerStationÔ Rugged
COTS 3000 VA Isolated UPS,
Rack Mount UPS for Shallow Depth Racks with
Integrated 6 Circuit, Intelligent, Solidstate Power Distribution Unit
P/N: ETI0001-1406 Rugged COTS UPS and
PDU Standard Front
Panel Layout w/ 2U Battery Module NSN:
6130-01-490-5565
P/N:

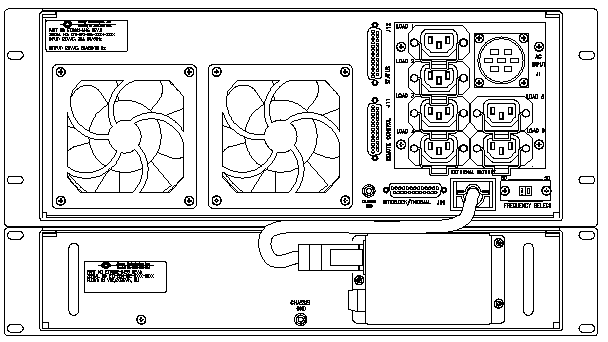

ETI0001-1406 Rugged COTS UPS and PDU Standard Rear
Panel Layout w/ 2U Battery Module
The field proven PowerStation™ UPS line is ideally suited for military,
industrial, computer and telecommunications applications requiring high reliability, rugged construction, compact size and light weight design.
These units are equally suited for use in shipboard, airborne, vehicular, field
deployed or fixed locations with controlled or uncontrolled environments. The
"ETI0001-1406" was specifically designed for US Navy rack systems
requiring higher power requirements. In typical installations, the 4U
electronics module and 2U battery
module are only 18.5" deep to accommodate shallow depth racks as found in
submarines. A heavy duty cable is provided to connect
the two modules. The "ETI0001-1406" does not require a separate PDU since the PDU
functions are already integrated into the UPS module. This saves rack space,
cabling and expense while improving overall reliability.
Both chassis have rounded
metal corners and rugged handles, both front and rear, aiding in safe handling. Internally, all major components are well secured and electrically insulated to prevent
damage due to shock and vibration in any axis. These units can be mounted
horizontally or vertically.
The internal shielded
input transformer provides galvanic isolation with provisions for domestic (115
VAC, CONUS)
and optional autoranging international input voltages (85-270 VAC,
OCONUS).
The
unit also operates as a frequency converter, taking 46-70 hertz input and
converting it to 60 hertz power.
The input
circuit breaker and the galvanic isolation transformer
all provide a double pole isolated source for all installations including shipboard systems or
overseas locations where phase references and grounding are not consistent.
The LED arrays keep the operator informed as to
the unit's status including load and battery levels. The high intensity audible alarm can
be heard in high noise environments.
All controls and protective devices are brought to front and rear panels with critical
switches having finger guards. Further, all front panel devices are recessed to prevent
damage or accidental operation. The internal intelligent PDU allows control of
the individual output circuits incorporating thermal and interlock interfaces
for additional control and safety, plus Battleshort override. The display and
control panel can be mounted remotely in the rack at eye level, or on the keyboard console,
or on the unit front panel with only a logic level cable connection.
The rear panel provides locking
connectors for the input and output power with various optional configurations
available. The output connectors are standard IEC320R with unique cable restraints. This reverse air flow version draws air through the front and exhausts out the rear
vents into the rack. A removable and washable intake air filter and high capacity
stainless steel ball
bearing fans provide added protection in both controlled and hostile environments.
The external battery connector allows the safe and easy addition of
the standard or extra battery modules without having to shut the unit down.
The batteries are maintenance free with immobilized electrolyte and are
constructed of flame retardant materials. For more information, see the Battery
Technology section. A
frequency selection switch is available for those sites requiring 50 hertz output instead
of the standard 60 hertz. The Status connector provides an
interface with optional computer software providing loss of AC and low battery status as well as
remote shut down capability. The PDU Remote Control connector provides an
interface to optional remote display/control panels.
See the Power Distribution Units section for a listing of
stand alone PDUs. See the N3 Series UPS section for UPS without
the integrated PDU and remote control.
Overall, the PowerStation line is uniquely qualified for critical shipboard, vehicle,
airborne or land based systems combining advanced modular design features with highly
reliable construction
